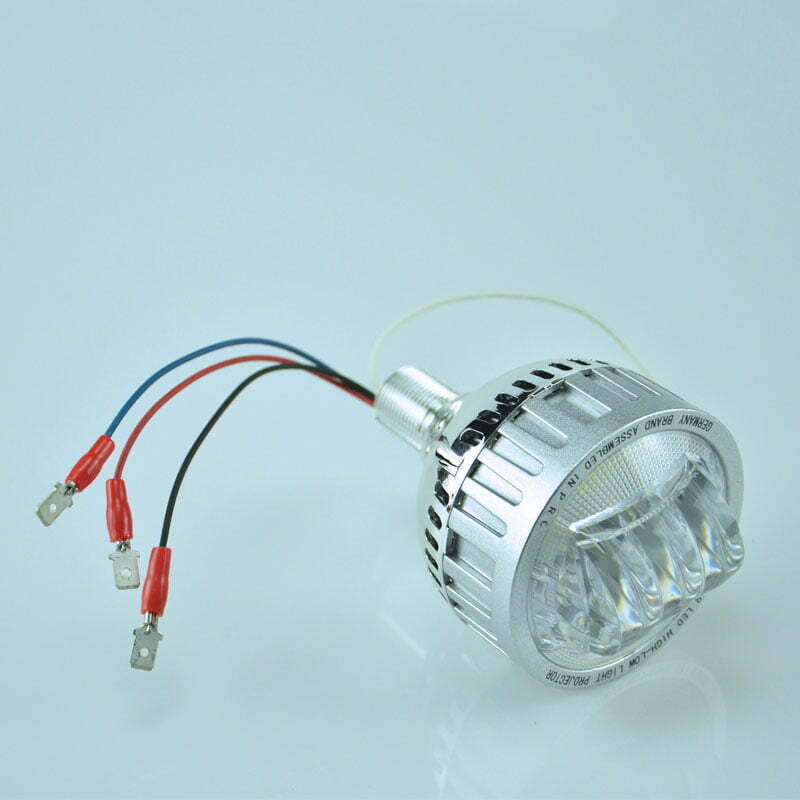

Why A6 Hi-Low Beams Led Headlight Projector?
Aozoom A6 hi-low led projector would be the very suitable product for those who want to retrofit the led projector with minimal cutting. It is small size, comes with the thread shaft, can be installed by the hex lock ring and mounting tap, and it definitely fit in automotive and motorcycle headlight housing, super easy to install. In the A6 led headlight projector, 3 kinds of different sources of the convex lens are used to form a complete set lens module, setting up the wide light beam pattern, which increases by 60% of irradiation width, up to standard 6 lane width. They're most appropriate for use not only in a headlight but also in a fog light retrofit because of their tiny size. Even though the projector is so small, the hi-low lens will give the decent light beam patterns that won’t disappoint you.
Physically and Functions

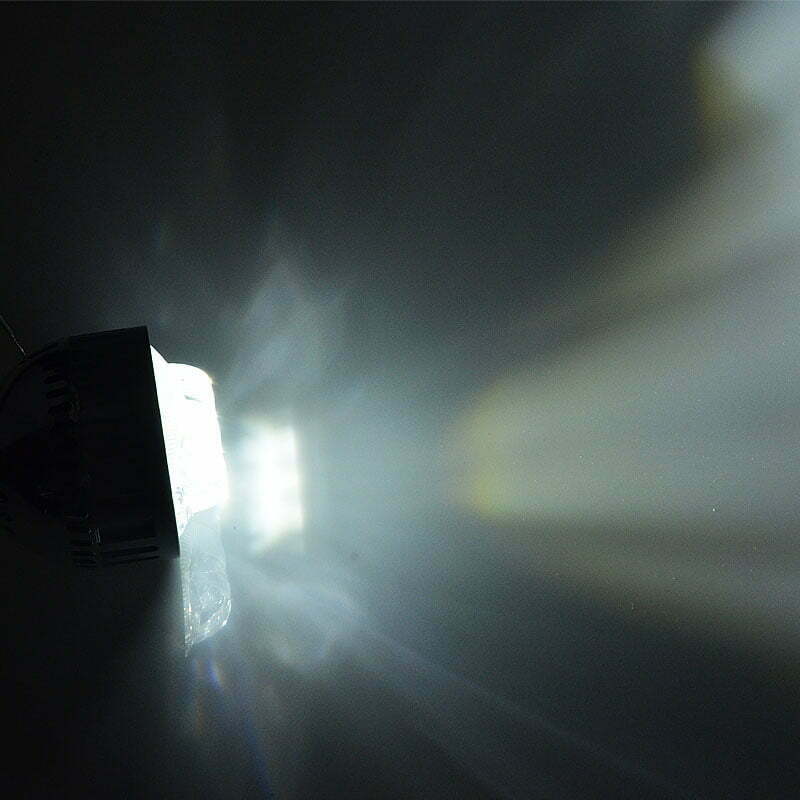

Again, Thanks for the convex lens module, the A6 led headlight projector has a pretty decent smooth distribution of light and flat cut-off line. There is a built-in ball-bearing fan behind the led panel for cooling and ensuring the LEDs work efficiently within a safe temperature range. The casing of this projector is made of 6063 aluminum around the lens and high-temperature resistant PC material on the back. The led projector has additional the evil eye function, it can also be used as an auxiliary turn signal.
Compatibility
The A6 hi-low led headlight projector can work on automotive and motorcycle for headlight as well as fog light. The led projector is compact enough, has a mounting shaft on the back for convenience and easy of installation. It can directly fit H4, H7 headlight housing and install in H1, H11, H13, 9005, 9006, 9007 housings with possibly minimal function.
12 Volt
LED light source can work at 12 volts while HID needs 12000 Volt to start. The bi-led projector will be safer and less consumption. Besides, Led has a longer lifespan compared to HID.
Installation
The A6 hi-low led headlight projector is all in one design with a built-in driver. It comes with the thread mounting shaft, you just remove the headlight, insert the threaded mounting shaft through the pre-existing hole in the back of the reflector, hand-tighten, check rotation, tighten, and re-seal headlights. Minimal cutting will probably be involved, but you'll find the results well worth it!
Confidence
Aozoom is capable of supplying automobile lighting products to Auto manufacturers and aftersales upgrading industry in China or overseas. In China alone, there are more than 2000 individual auto lighting franchise stores, and over 10 overseas country-level distributors. We are exporting products as well as supplying technology and knowledge about product installation and marketing feedback. Contact us today with any questions; you won’t regret it!
Dimension
Depth: 78mm
Width: 78mm
Height: 92mm
Lens diameter: 3 inch
Mounting Shaft Diameter: 19mm

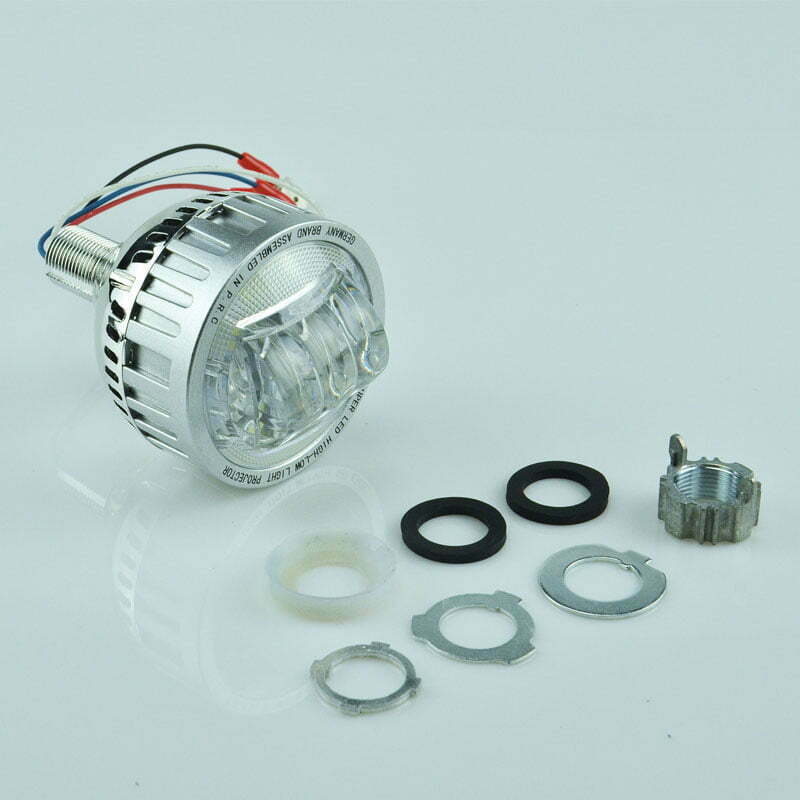

What’s included?

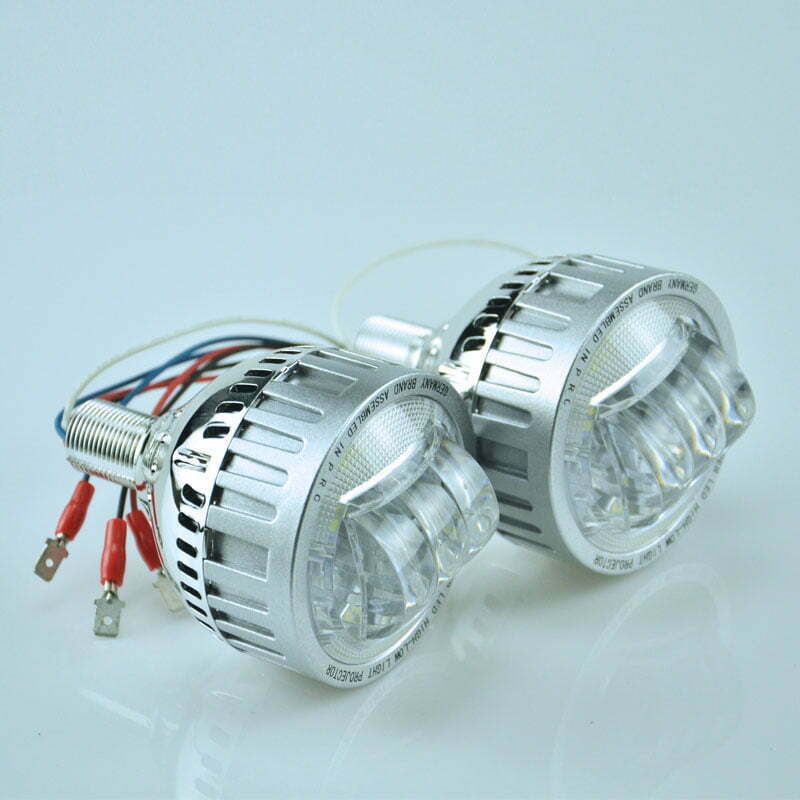

PROJECTORS: 2x Aozoom A6 hi-low Led Headlight Projectors,
2 PCS Lock Rings, Bulb Caps, Etc
Warranty
24 months
MOQ
20 Kits,
No quantity limited to sample order.
